CAPITANO 140 – The mobile all-round compressor in excellent professional quality
Tough: Thanks to an incredibly durable driving gear. Suitable for short-term operation and continuous service
Durable and robust: Three-stage construction and industrial roller bearings maximise the service life of the units
Protected against corrosion: With an ultra-lightweight aluminium chassis for the best possible protection against corrosion
Reliable lubrication: With generously dimensioned low-pressure oil pump
The CAPITANO 140 by BAUER KOMPRESSOREN has been developed specifically for advanced professional applications. Incredible durability, compact dimensions and low weight count here in equal measure.
Furthermore, the first stage and the high-pressure final stage of the CAPITANO 140 feature piston rings made from a new high-tech plastic which are virtually wear-free.
A vibration-reducing motor rocker design optimises smooth running.
Thanks to the extensive range of BAUER accessories, the compressor can be customised to meet all manner of different requirements and intended uses in next to no time.
All the information you need at your fingertips!
IK 100 compressor block
The BAUER IK 100 series compressor block has been designed for the most demanding professional applications. Dimensioned for more than 30,000 operating hours, it has proven its worth in thousands of application scenarios. Read more
P 21 filter system
When used in conjunction with original BAUER filter cartridges, the P 21 filter system with integrated oil and water separator and pressure retention check valve can be relied upon for breathing air treatment conforming to DIN EN 12021¹. A type-tested and sealed final pressure safety valve enables particularly high levels of operational safety to be achieved. 140 m³ of air can be treated.
¹ If the units are maintained and installed correctly as described in the operating instructions or user manual and if the concentration of CO2 in the intake air does not exceed the values specified in the applicable standard for breathing air.
Filling device
The filling device comprises a flexible "UNIMAM" high-pressure filling hose and filling valve complete with final pressure gauge. The final pressure gauge makes it easy to read off the filling pressure. It is protected against damage by a durable rubber jacket.
Filling hose
High-quality UNIMAM high-pressure filling hoses made from food-safe and long-life hose material make for flexible and safe handling. Swivel hose connections enable the filling valve to be connected to the breathing air cylinder quickly, easily and safely.
Motor rocker
The integration of a motor rocker means that the tension of the V-belt no longer has to be adjusted.
Automatic condensate drain incl. final pressure shutdown and control conforming to European CE standard
The automatic condensate drain B-DRAIN is controlled via the electrical control system. The condensate produced can be collected in a condensate tank for disposal in an environmentally-friendly way.
Compressor control (PROFI-LINE)
This electrical control system with additional monitoring electronics switches the compressor off automatically when the final pressure is reached in the system, measures operating hours and oil pressure, and displays the current operating status. As such, it facilitates fully automatic operation with storage systems.
Crash frame incl. handles
The corrosion-resistant crash frame provides additional protection for the unit and can accommodate additional accessories such as a compressor control or a larger filter system. The handles make moving the unit easy and convenient.
Switch-over device PN 300/200 bar
For easy and flexible switching from 200 to 300 bar and vice versa. Read more
P 31 filter system
When used in conjunction with original BAUER filter cartridges, the P 31 filter system with integrated oil and water separator and pressure retention check valve can be relied upon for breathing air treatment conforming to DIN EN 12021¹. A type-tested and sealed final pressure safety valve enables particularly high levels of operational safety to be achieved. 600 m³ of air can be treated.
¹ If the units are maintained and installed correctly as described in the operating instructions or user manual and if the concentration of CO2 in the intake air does not exceed the values specified in the applicable standard for breathing air.
B-TIMER filter cartridge monitoring
The operating hours and the current level of cartridge saturation are displayed on the unique B-TIMER mini-computer. Read more
Telescopic intake tube
The telescopic intake tube is highly recommended when operating compressor units in locations with increased concentrations of hazardous substances such as CO or CO2.
It enables the intake range of the compressor to be moved to a suitable location.

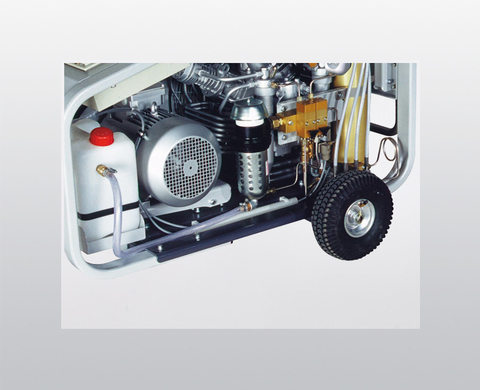

Trolley
The trolley provides an easy and convenient mode of transport for mobile compressor units. Fitted with pneumatic tyres, the trolley maximises mobility.
Additional intermediate separator after the first stage
In the case of operation in locations where air humidity is high (tropical regions, for example), we recommend installing a separator downstream of the first compressor stage. This can extend the service life of the unit and reduce maintenance costs.
Additional filling device PN 200 or PN 300 bar
There is the option to supplement an existing filling valve with the addition of one or more filling valves with filling hoses of varying lengths.
Other voltages/frequencies
All electric motors are available with other voltages and frequencies on request.
Paint finish/Special paint finish
All frame parts of BAUER compressors are finished with a sophisticated powder coating. Read more
Scope of delivery, basic version
Complete compressor unit ready for operation. Read more
| Type designation | Charging rate ¹ | Drive | Filter system | Net weight | Dimensions L × W × H | |
|---|---|---|---|---|---|---|
| l/min | Motor | kW | approx. kg | cm | ||
| CAPITANO 140-B | 140 | petrol engine | 4.0 | P 21 | 95 | 115 × 59 × 55 |
| CAPITANO 140-E | 140 | Three-phase motor, 400 V, 50 Hz ² | 3.0 | P 21 | 102 | 115 × 59 × 55 |
¹ Measured with cylinder filling from 0 to 200 bar, ±5%
² Option of different voltage/frequency available
