B-DETECTION PLUS

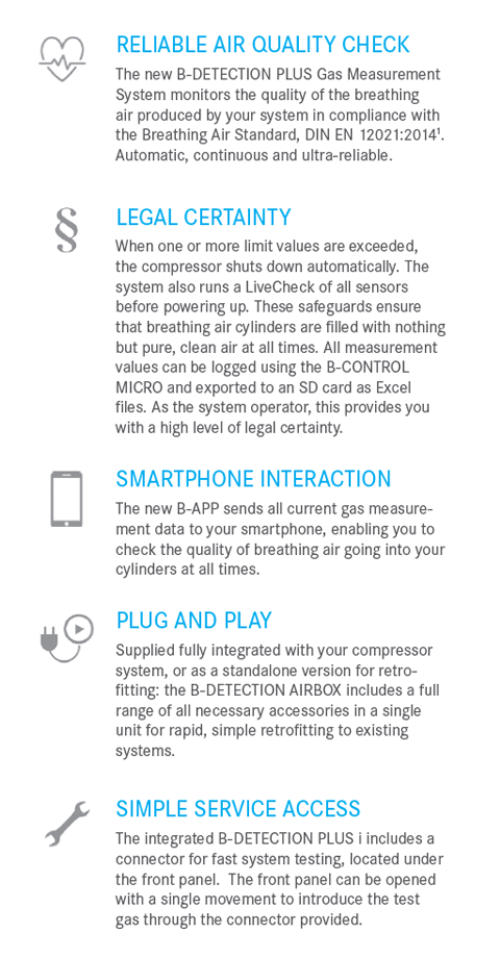

PERMANENTLY MONITORS
THE QUALITY OF YOUR
BREATHING AIR
The optional fully integrated gas
measurement system, B-DETECTION
PLUS i, monitors the quality of the
breathing air produced by the system.
Automatic, continuous and outstandingly
reliable. The optional humidity monito-
ring function takes over the function of
B-SECURUS and allows lower-cost
standard cartridges to be used.
The display of the B-CONTROL MICRO
compressor control unit allows you to
monitor compliance with the limit values
of the DIN EN 12021:2014
1
Breathing Air
Standard at all times. If limit values are
exceeded, the control unit displays a
visual warning and shuts down the
system before contaminated air can pass
into the cylinders being filled.
In cases where limit values are briefly
exceeded, an automatic flush valve
(optional) discharges contaminated air to
the outside without interrupting
operation of the system.
BAUER’s B-DETECTION PLUS i provides
operators with the maximum security
concerning health and legal liability
issues.
Measurement uses high-quality sensors
with continuous life-check function,
ensuring reliable sensor performance.
An optional humidity membrane can be
added to maximise sensor life.
More…
1 Residual oil (VOC) and humidity monitoring optional. Residual oil measurement based only on
volatile organic compounds (VOCs). Sensor calibration based on isobutene.
